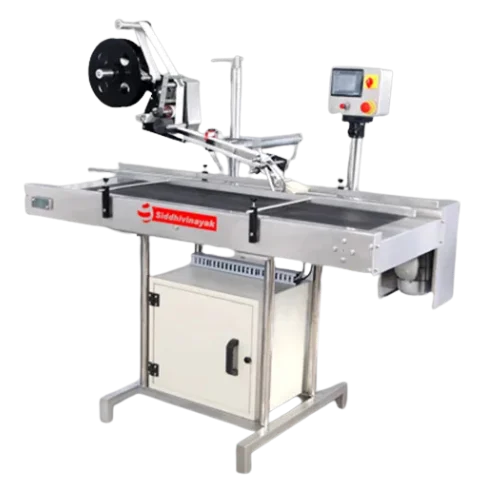

Automatic Top / Bottom Sticker Labeling Machine
Automatic Top & Bottom Sticker Labeling Machine is designed for accurate labeling on the top and bottom surfaces of pouches, cartons, boxes, caps, trays, and various containers. The machine ensures high-speed and precise label application with synchronized conveyor movement and advanced PLC based control system. It is suitable for pharmaceutical, cosmetic, food, beverage, dairy, chemical, and packaging industries.
Everything You Need to Know
Detailed technical data, salient features, and optional accessories — all in one place.
| Model No. | SVTBSL 100 | SVTBSL 200 | SVTBSL 300 |
|---|---|---|---|
| Model | SVTBSL 100 | SVTBSL 200 | SVTBSL 300 |
| Direction of Movement | Left to Right | Left to Right | Left to Right |
| Output/Min* | Up to 100 Labels / Min. | Up to 200 Labels / Min. | Up to 300 Labels / Min. |
| Power Supply | 1 kW Single Phase 230V, 50Hz AC Supply | 1.5 kW Single Phase 230V, 50Hz AC Supply | 2.0 kW Single Phase 230V, 50Hz AC Supply |
| MOC | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum | Stainless Steel 304, Anodized Aluminum |
| Machine Dimension | L 2000 × W 1000 × H 1800 mm | L 2000 × W 1000 × H 1800 mm | L 2000 × W 1000 × H 1800 mm |
| Label Roll Core | 76 mm | 76 mm | 76 mm |
| Label Roll Diameter | 300 mm | 300 mm | 300 mm |
| Container Size | L 50-250 mm × W 50-300 mm × H 3-100 mm | L 50-250 mm × W 50-300 mm × H 3-100 mm | L 50-250 mm × W 50-300 mm × H 3-100 mm |
| Label Material | Self-Adhesive Sticker | Self-Adhesive Sticker | Self-Adhesive Sticker |
| Stop Tolerance | ± 1 mm | ± 1 mm | ± 1 mm |
| Label Size | L 12-250 mm × W 12-200 mm | L 12-250 mm × W 12-200 mm | L 12-250 mm × W 12-200 mm |
| Gap Between Two Labels | Minimum 3 mm | Minimum 3 mm | Minimum 3 mm |
| Printer Device | According to Customer Requirement | According to Customer Requirement | According to Customer Requirement |
| Machine Weight | 300 Kg Approx. | 350 Kg Approx. | 350 Kg Approx. |
- No Container No Label
- Vacuum Conveyor Belt for Stable movement of container while apply the label – Optionally
- Total GMP Model
- Very Smooth & Accurate Label Placement
- Strurdy Stainless Steel Frame Structure & Door
- Auto Label Length Measurement
- Advance PLC Controlled Stepper / Servo Motor Label Dispenser Unit
- On-Line Speed Can Be Vary at Single touch Point
- Suitable toApply label on Top /bottom side on flat surface
- Partial Machine Guarding
- Touch Screen display(HMI)
- Built In Control Panel
- Spring Loaded Label Pressing Sponge Roller Arrangement
- Height Adjustable Legs
- Container Separator With Variable Speed DC Drive
- Vibration Free PVC endless Conveyor belt with Variable Speed Drive
